High Carbon Steel Woven Screen Mesh

Efficient screening of materials requires the right weave. Unified Screening & Crushing has one of the largest selections of weave styles available. Our wide selection of weave styles means youʼll find the right design

Send Email

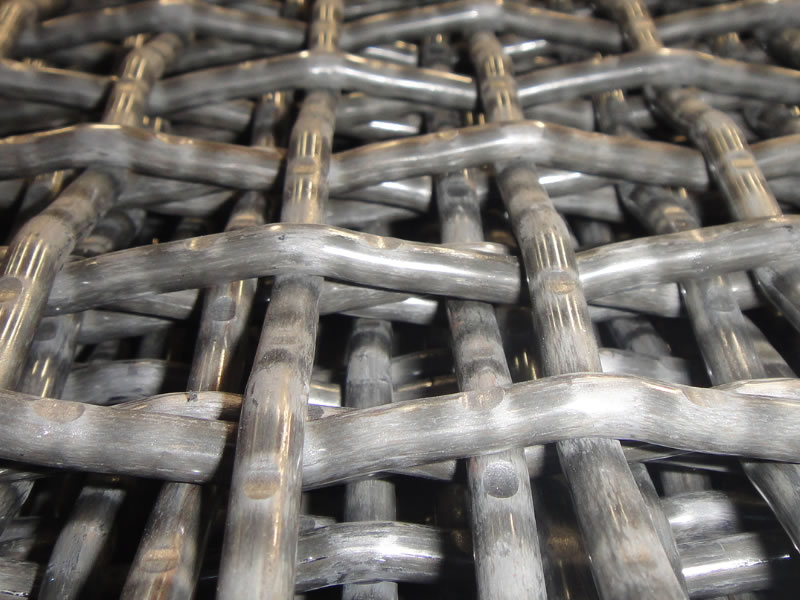

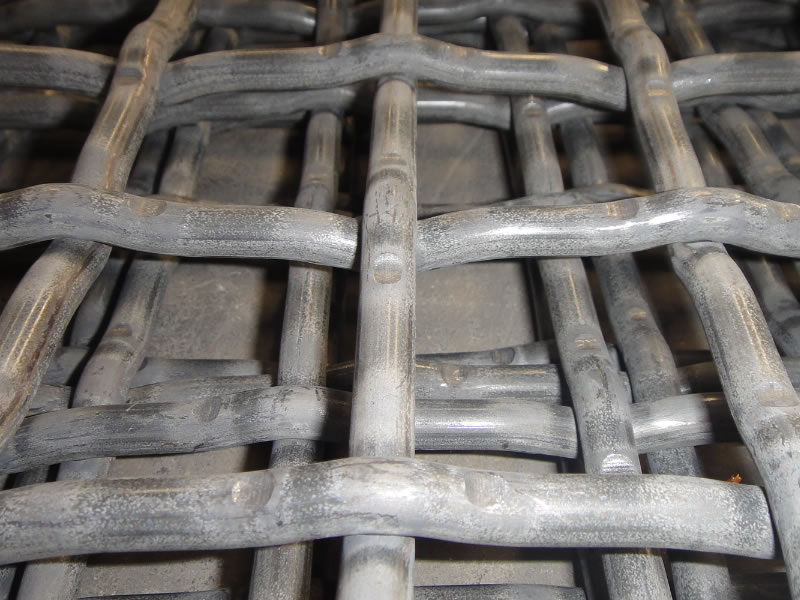

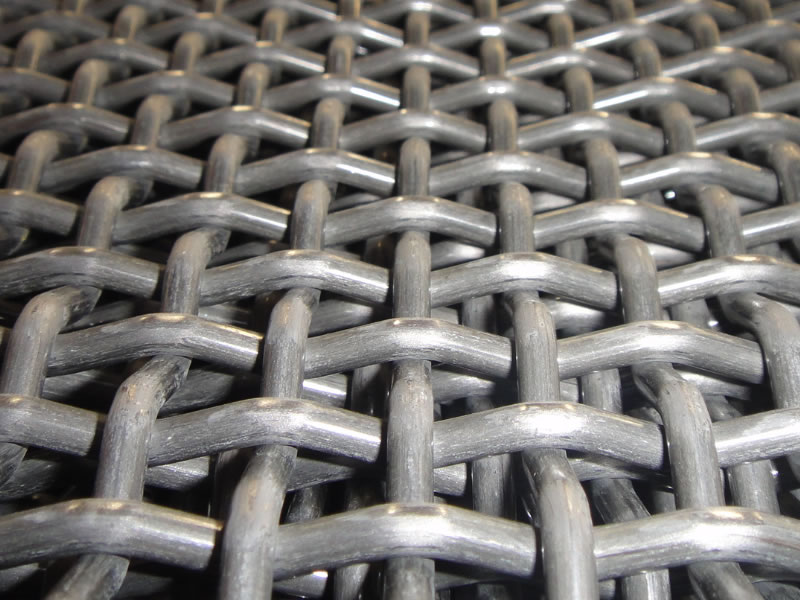

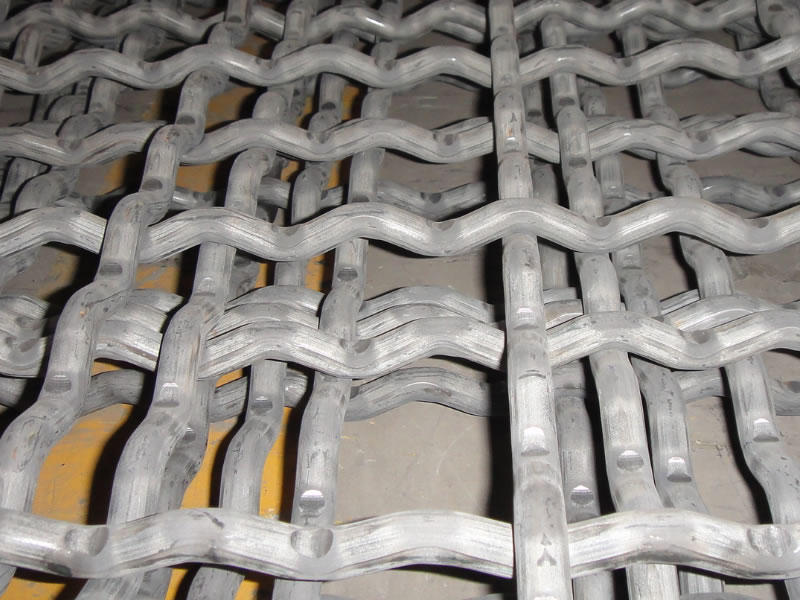

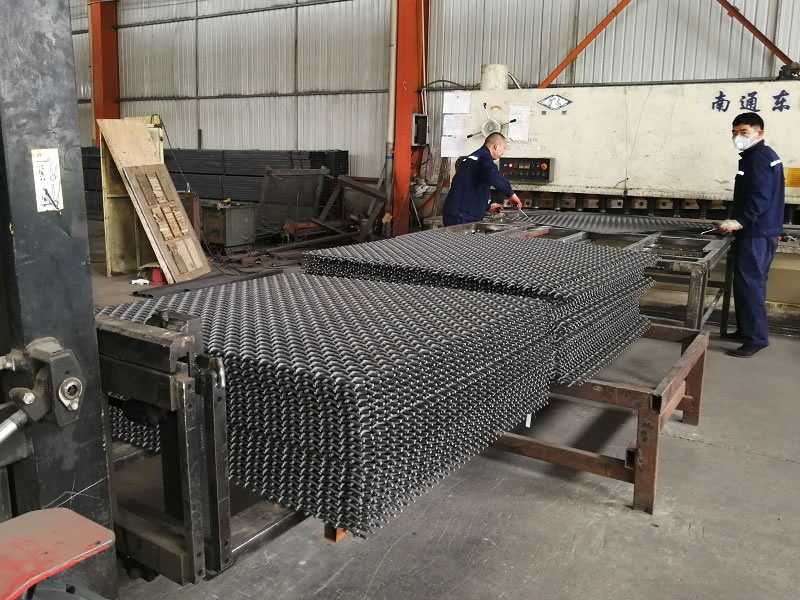

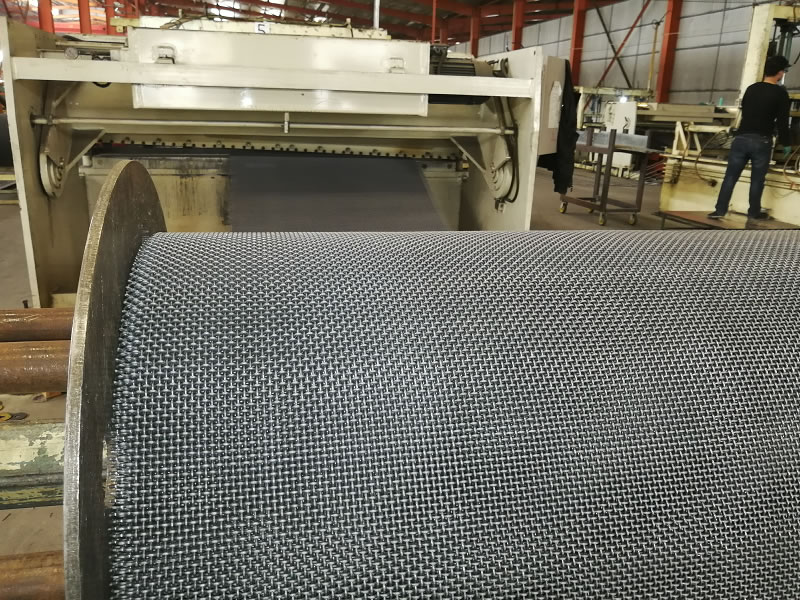

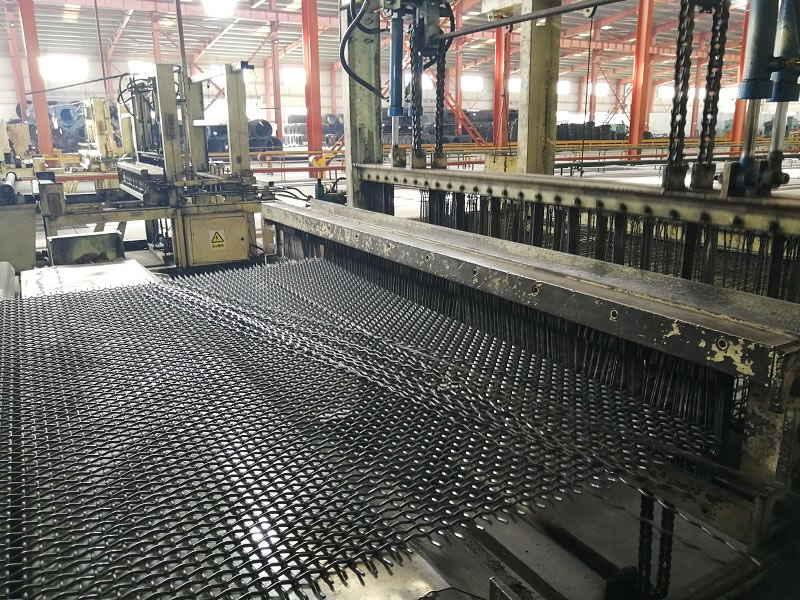

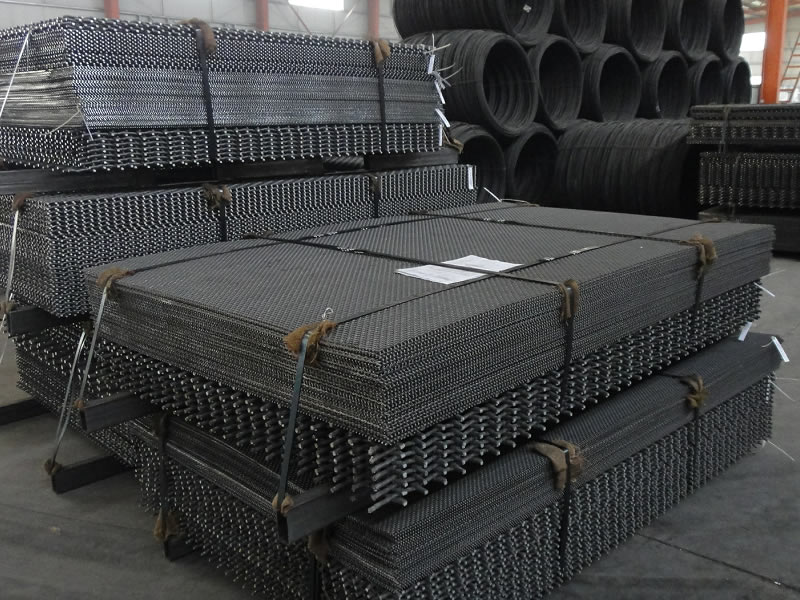

Square Opening Screen is a versatile screening media which is easy to install and maintain. Designed to a long wear life and can be economically used in most applications.

Material: High Tensile Steel Wire or S.S. Wire

Wire Diameter: 1.0-12.5mm

Aperture: 2.0-100.0mm

End Types: Flat Screen/ Wrapped or Hooked

Characteristics: ±3% aperture tolerance,perfect flatness/ squareness,superior mesh evenness/ tightness

Benefit:
1. Large percentage open area boosts production
2. Fit for any tensioning hooks and any deck of the screen
3. Quick and easy change out of deck
4. A low initial cost compared to other media available
5. Much longer wear life than common woven wires.

Production standard is according to ISO4783/3

Wire Cloth - Standard Weave Styles
Selecting the right weave helps ensure efficient screening of materials.

Weave Styles
Efficient screening of materials requires the right weave. Unified Screening & Crushing has one of the largest selections of weave styles available. Our wide selection of weave styles means youʼll find the right design for your screening application:Aggregate production, mineral sizing, grain drying, traveling water screens, power plant applications, livestock flooring and many others. Select from the weaves shown here, or call for information on special fabricated screens.

Double-Crimp
A smaller opening weave style. All around efficient and long-wearing performance in a variety of applications.		Loc-Crimps
A larger opening weave style for scalping and heavy applications. Wire is locked in place for long wear and accurate opening sizes for the life of the screens.
Slotted Openings
Single-shute oblong openings solve minor blinding problems for better flow.		Flat Tops
May improve material flow with flatter surface than other weaves.
TwinWire
Designed for high impact, top deck applications. Typically used for 1.5" openings and larger.		Tri-Loc/Tri-Mesh
Long openings help keep sticky or wet material flowing freely. The Tri-Loc weave holds wires securely yet permits slight vibration to keep openings clear.


The Specification of Crimped Wire Cloth:

Aperture Square Weave Light duty Wire Dia kg/m2 OA% Medium Duty / Wire Dia kg/m2 OA% Heavy Duty / Wire Dia kg/m2 OA%
2 0.71 2.50 54 1 4.49 44 1.25 6.47 38
2.5 1 3.81 51 1.25 5.56 44 1.6 8.33 37
3.15 1.4 5.74 48 1.6 7.19 44 2 10.36 37
4 1.6 6.10 51 2 8.89 44 2.5 12.82 38
4.5 1.6 5.54 54 2 8.21 48 2.5 11.91 41
5 2 7.47 51 2.5 11.11 44 3.15 16.24 38
5.6 2 6.88 54 2.5 10.09 48 3.15 14.83 41
6.3 2 6.30 58 2.5 9.29 51 3.15 13.74 44
7.1 2 5.75 61 2.5 8.52 55 3.15 12.66 48
8 2.5 7.79 58 3.15 11.64 51 4 17.44 44
10 3.15 9.87 58 4 14.95 51 5 21.80 44
11.2 3.15 8.78 61 4 13.37 54 5 19.60 48
12.5 4 12.32 57 5 18.14 51 6.3 26.81 44
14 4 11.29 60 5 16.71 54 6.3 24.83 48
16 4 10.16 64 5 15.12 58 6.3 22.60 51
18 4 9.24 67 5 13.80 61 6.3 20.74 55
20 5 12.70 64 6.3 19.17 58 8 29.03 51
22.4 5 11.59 67 6.3 17.56 61 8 26.74 54
25 6.3 16.10 64 8 24.63 57 10 36.29 51
28 6.3 14.70 67 8 22.58 60 10 33.42 54
30 6.3 13.89 68 8 21.39 62 10 31.75 56
31.5 6.3 13.34 69 8 20.58 64 10 30.60 58
38 6.3 11.38 74 8 17.67 68 10 26.46 63
40 8 16.93 69 10 25.40 64 12.5 37.80 58
45 8 15.34 72 10 23.09 67 12.5 34.51 61
50 8 14.01 74 10 21.17 69 12.5 31.75 64
55 8 12.90 76 10 19.54 72 12.5 29.40 66
63 8 11.45 79 10 17.40 74 12.5 26.28 70
71 10 15.68 77 12.5 23.76 72 16 37.37 67
80 10 14.11 79 12.5 21.45 75 16 33.87 69
100 10 11.55 83 12.5 17.64 79 16 28.03 74
